X-Air "F" Model - Flaps

The "F" model or "FLAP" model is an evolution of the standard X-Air, it has three stage flaps to slow the aircraft down for landing. The wing and tail on the Flap model also differs from the standard X-Air. The flap model flies faster than the standard X-Air because of the different profile wing and the flap model also costs slightly more but comes standard with rear wheel pants, doors and wide entry.

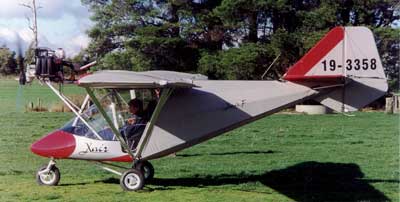

The X-Air FLAP Model

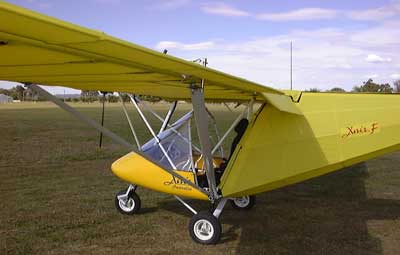

Close-up picture of the Flaps

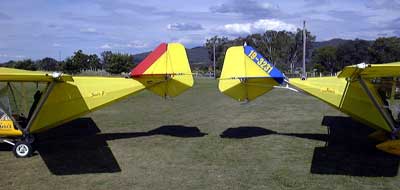

Notice how the FLAP model's tail differs from the standard model on the right

TECHNICAL DATA FLAP MODEL

Rotax 582

Jabiru 2.2

Basic empty weight

237 kgs

262 kgs

Max. empty weight equipped (kg)

281 kgs

284 kgs

Max. empty weight equipped with parachute (kg)

303.5 kgs

306.5 kgs

Maximum weight (kg)

490 kgs

490 kgs

Fuel capacity (l)

55

55

Engine

Rotax 582

Jabiru 2.2

Cooling

water

air/oil

Carburetor

2

1

Electronic ignition

2

2

Power

64hp at 6500

80hp at 3300

Displacement

580.3 cm3

2200 cm3

Fuel mixture

2%

NA

Fuel

92 octane

95 octane

Wingspan

9.40m

Length

5.65 m

Height

2.55 m

Cockpit width

1.16 m

Wings area

14.32 m2

Loading

+6 -3

PERFORMANCE

Rotax 582

Jabiru 2.2

Take off run (m)

120

100

Climb rate (m/s)

500 fpm

885 fpm

Max cruising speed at level

62 knots

70 knots

Cruise speed economical

50 knots

60 knots

Consumption economical (l/h)

12 lph

9 lph

Landing Distance

80 m

Sink rate

685 fpm

Climb speed

43 knots

Stall speed

28 knots

VNE

83 knots

Service ceiling

12,000 feet

Glide ratio

8:1 @ 37 knots

Distance to clear 15 m at landing

140 m

Distance to clear 15 m at take off

220 m

165 m
