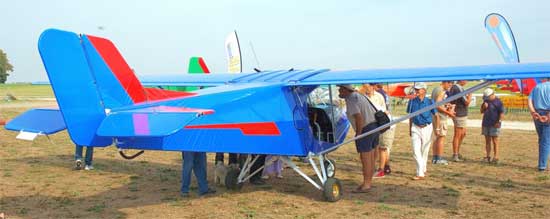

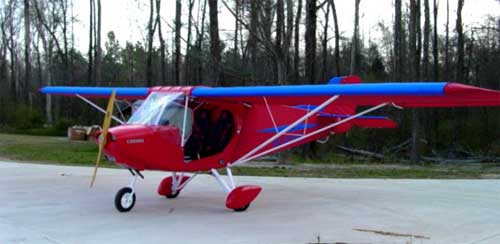

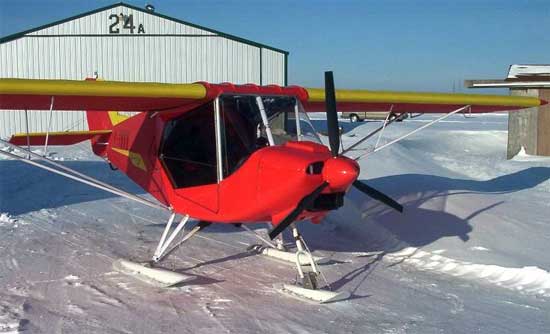

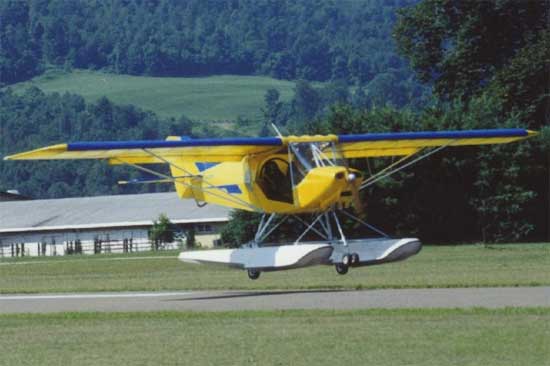

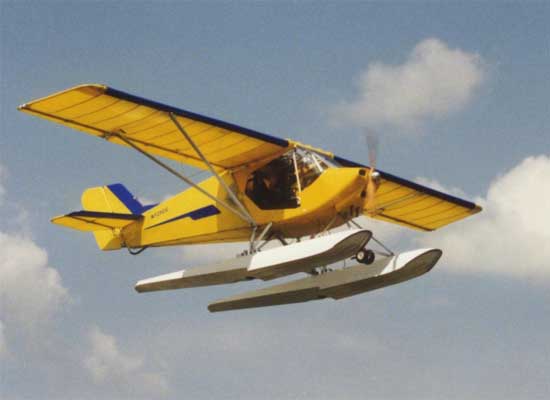

The X-Air "H" or Hanuman

The X-Air Hanuman is the latest release from the X-Air factory. Easy access doors, increased fuel capacity and large cockpit make the Hanuman in an ideal aircraft training, recreation or cross country adventures. Strong and rugged undercarriage will handle off-field operations with ease. The Hanumancan be powered by the 80 hp Rotax 912, the Jabiru 2.2 or the Rotax 582 engines. The average builder will take approximately 80 to 100 hours to complete the Hanuman aircraft.

TECHNICAL DATA

Rotax 582

Jabiru 2.2

Rotax 912 80hp

basic empty weight

263 kgs

276 kgs

282 kgs

max. empty weight equipped (kg)

281 kgs

284 kgs

289 kgs

max. empty weight equipped with parachute(kg)

303.5 kgs

306.5 kgs

311.5 kgs

Maximum weight (kg)

560 kgs

560 kgs

560 kgs

Fuel capacity (l)

80

80

80

Engine

Rotax 582

Jabiru 2.2

Rotax 912 80hp

Cooling

water

air/oil

air/water/oil

Carburetor

2

1

2

Electronic ignition

2

2

2

Power

64hp at 6500

80hp at 3300

80hp at 5800

Displacement

580,3 cm3

2200 cm3

1211.2 cm³

Fuel mixture

2%

NA

NA

Fuel

80 Liters

Wingspan

10,05 m

Length

6,09 m

Height

2,30 m

Cockpit width

1,14 m

Wings area

13,92 m2

Loading

+6 -3

PERFORMANCE

Rotax 582

Jabiru 2.2

Rotax 912 80hp

Take off run meters

70 m

80 m

55 m

Climb rate fpm

885 fpm

900 fpm

100 fpm

Maximum speed knots

81 knots

90 knots

95 knots

Cruising speed knots

70 knots

76 knots

85 knots

Cruise speed economical knots

67 knots

70 knots

80 knots

Consumption economical lph

14 lph

11 lph

14 lph

Landing

70 m

Sink rate mini

492 fpm

Climb speed

46 knots

Stall speed

34 knots @ full flaps
31 knots @ 25°
28 knots @ 45°

VNE

105 knots

Service ceiling

12,000 feet

Glide ratio

9:1 @ 48 knots

Distance to clear 15 m at landing

110 m

Distance to clear 15 m at take off

220 m

Note: The Hanuman comes standard with doors, rear wheel spats and 80 litre fuel tank.
